48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators

48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators

Marka Adı:	BeLYEnergy
Model Numarası:	BLY-LPF-48V200AH
Moq:	10 adet
fiyat:	pazarlık edilebilir
Teslim Zamanı:	Örnekler için 2-3 hafta; seri üretim için 4-6 hafta
Ödeme Şartları:	T/T, L/C, Western Union, MoneyGram

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin'de yapılmış

Sertifika:

CE,ROHS,MSDS,UN38.3

Boyut:

L620x G430 x Y430mm veya özelleştirilmiş boyut

Malzeme:

Ağırlık:

≤105kgs

Çevrim Ömrü:

6000'den Fazla Döngü

Nominal kapasite:

200 Ah

Uygulama:

Ev enerji depolaması

Maksimum Boşaltma Akımı:

Ambalaj bilgileri:

BM kartonu

Yetenek temini:

ayda 1000 adet

Vurgulamak:

LCD Indicators Stackable LiFePO4 Battery

RS485 Stackable LiFePO4 Battery

48V200Ah Stackable LiFePO4 Battery

Ürün Açıklaması

Stackable LiFePO4 Battery --48V200Ah 16S With RS485/CAN Communication With LCD Indicators

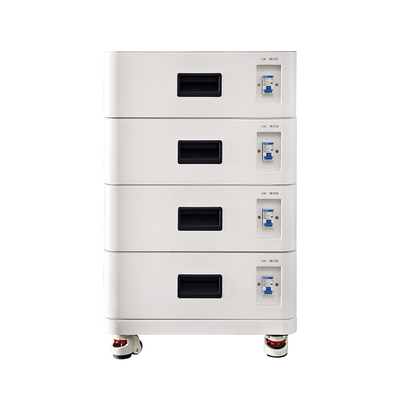

48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators 0

BeLY Stackable & Wall Mount Battery is available in capacities of 5kWh, 10kWh, 15kWh and 20kWh etc., which allow you to store

sufficient solar energy to power your home, significantly reduce dependence on the grid and keep home appliance normal running

when the grid goes down.

1. General Information

This specification defines the performance of rechargeable LiFePO4 Stackable home solar storage battery pack BLY-LFP48V100AH manufactured by SHENZHEN BELY ENERGY TECHNOLOGY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.

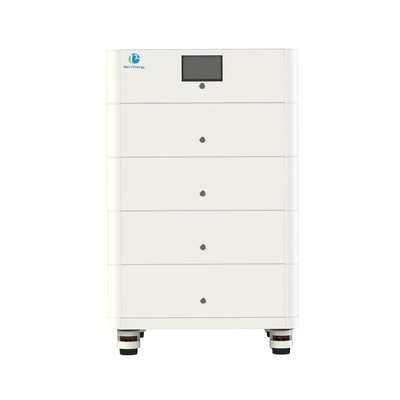

48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators 1

2. Battery Specification(@ 25±5℃)

ELECTRICAL SPECIFICATIONS
Nominal Voltage	51.2V
Nominal Capacity	200Ah
Energy	10240Wh
Resistance	≤ 10mΩ
Efficiency	≥ 99%
Self Discharge	＜3% per Month
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	L620x W430x H430mm or customized size
Weight	104KG
Terminal Type	M8 Terminal
Case Material	Metal sheet Case
Enclosure Protection	IP20
Cell Type	New Grade A Automotive Prismatic Cells
Chemistry	LiFePO4
CHARGE SPECIFICATIONS
Recommended Charge Current	≤ 200A
Maximum Charge Current	200A
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current	200A
Peak Discharge Current	210A (5S)
Under Voltage Protection	40V
Over Charge Voltage Protection	58.4V
Short Circuit Protection	400 ≤ 500uS
Cells Balancing Voltage	3.5V (Voltage Difference 20mV between each Cells)
TEMPERATURE SPECIFICATIONS
Discharge Temperature	-20 to 60℃
Charge Temperature	0 to 60℃
Storage Tempearture	-10 to 45℃
COMPLIANCE SPECIFICATIONS
Certifications	CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery), UL(Cells)
Shipping Classification	UN3480, CLASS 9
Package	UN Carton

3.Description of LiFePO4 Battery

Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 6,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

4. Period of Warranty

The period of warranty is 5 years from the date of shipment. BeLY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

5. Application Scenario

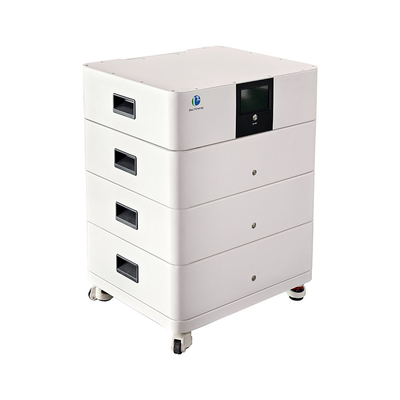

48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators 2

48V200Ah Stackable LiFePO4 Battery for Solar Power System with RS485/CAN Communication and LCD Indicators 3
